DGS-1210- 52

Name: DGS-1210- 52
Brand: RISE TECH SOLUTIONS
Price: 23000.0 INR
Availability: InStock

23000.0 INR/Piece

Get a Price/Quote

Product Details:

Device Type Layer 2+/Lite Layer 3 Switch
Features Quality of Service (QoS), VLAN, IGMP Snooping, Energy Efficient Ethernet (EEE), Port Mirroring, Access Control List (ACL), DHCP Server Screening, Spanning Tree Protocol (STP)
Interface Type RJ-45/SFP
Port 48 x 10/100/1000BASE-T ports, 4 x SFP ports
Frequency 50/60 Hz
Remote Control Yes
Dimension (L*W*H) 440 x 250 x 44 mm
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

DGS-1210- 52 Price And Quantity

Minimum Order Quantity 1 Piece
Price 23000.0 INR/Piece

Forwarding Rate 77.4 Mpps
Storage Temperature -40°C to 70°C
LED Indicators Power, Link/Activity (per port)
Storage Humidity 0% ~ 95% non-condensing
Switching Capacity 104 Gbps
Rack Mountable Yes, 19-inch rack mount kit included
Jumbo Frame Support Up to 10,000 bytes
Fan Smart Fan with temperature sensor
MAC Address Table Size 16K entries

DGS-1210- 52 Product Specifications

Operating Temperature 0C to 50C
Power Supply 100 to 240 VAC, 50/60 Hz internal universal power supply
Number Of Ports/Pins 52 total (48 copper, 4 SFP)
IP Routing Static Routing Support
Weight 3.73 kg
Cable Length Up to 100m (Ethernet copper) per port
Usage & Applications Enterprise, SMB, campus and network aggregation
Network Device Managed Gigabit Switch
Power Consumption Maximum 32.7 W
Frequency 50/60 Hz
Connectivity Type Wired Ethernet
Remote Control Yes
Dimension (L*W*H) 440 x 250 x 44 mm
Device Type Layer 2+/Lite Layer 3 Switch
Features Quality of Service (QoS), VLAN, IGMP Snooping, Energy Efficient Ethernet (EEE), Port Mirroring, Access Control List (ACL), DHCP Server Screening, Spanning Tree Protocol (STP)
Port 48 x 10/100/1000BASE-T ports, 4 x SFP ports
Interface Type RJ-45/SFP

Forwarding Rate 77.4 Mpps
Storage Temperature -40°C to 70°C
LED Indicators Power, Link/Activity (per port)
Storage Humidity 0% ~ 95% non-condensing
Switching Capacity 104 Gbps
Rack Mountable Yes, 19-inch rack mount kit included
Jumbo Frame Support Up to 10,000 bytes
Fan Smart Fan with temperature sensor
MAC Address Table Size 16K entries

DGS-1210- 52 Trade Information

FOB Port 48
Supply Ability 10 Piece Per Day
Delivery Time 2 Days
Sample Available No

Product Description

52-Port Gigabit Smart Managed Switch

DGS-1210-52

48 x 10/100/1000BASE-T ports
4 x Gigabit GbE/SFP combo ports
Advanced L2 switching and security features
L2+ Static Routing
Optional standard mode or surveillance mode management user interface

Powerful Performance for Demanding Networks

With a 16K MAC address table, 104 Gbps switching capacity, and up to 77.4 Mpps forwarding rate, the DGS-1210-52 efficiently handles heavy network traffic in business environments. Its 48 copper gigabit ports and 4 SFP uplinks offer extensive connectivity, making it well-suited for enterprises, SMBs, and campus networks needing high-speed data transfers and reliable aggregation.

Advanced Management and Security Features

This switch supports comprehensive functions such as Quality of Service (QoS), VLAN, IGMP Snooping, Storm Control, ACL, DHCP server screening, and static routing. Administrators can easily manage, configure, and monitor the switch through a user-friendly web GUI, SNMP, or Telnet, ensuring smooth network operations and simplified troubleshooting.

Efficient Design and Installation

The DGS-1210-52 features a slim, 19-inch rack-mountable design with a universal internal power supply, smart fan with temperature sensor, and robust LED indicators for each port. With support for jumbo frames of up to 10,000 bytes and Energy Efficient Ethernet (EEE), it is both easy to install and economical for long-term operation in dynamic environments.

FAQ's of DGS-1210- 52:

Q: How do I install the DGS-1210-52 switch in my network setup?

A: The DGS-1210-52 comes with a 19-inch rack mount kit, making it simple to install in standard server racks. Ensure the device is placed in a well-ventilated area, connect power using the internal supply, and link devices via the 48 Gigabit copper ports or 4 SFP uplinks. Configuration can be managed through the web GUI, SNMP, or Telnet.

Q: What are the benefits of using the DGS-1210-52 in enterprise or campus environments?

A: This switch offers high switching capacity and forwarding rate, advanced management and security features, and robust connectivity options. Its jumbo frame support and energy-saving capabilities make it ideal for bandwidth-intensive and dynamic networks such as campuses, businesses, and aggregation points.

Q: Where can the DGS-1210-52 be used most effectively?

A: The DGS-1210-52 is suitable for enterprise backbones, SMB networks, campus aggregation points, and anywhere reliable, high-throughput wired Ethernet connections are required, including use by manufacturers, service providers, suppliers, and traders in India.

Q: What process should I follow to configure the switch remotely?

A: You can easily configure the switch remotely by accessing its web-based GUI. Alternatively, SNMP and Telnet interfaces are provided for more advanced or automated management. These options allow you to monitor, set VLANs, apply ACLs, and manage routing and QoS settings securely from any network location.

Q: When should I use SFP ports instead of Gigabit copper ports?

A: SFP ports are ideal for extending your network over longer distances (with fiber) or connecting to different types of network infrastructure. Use the 4 SFP ports when you need high-speed uplinks to other switches, routers, or for inter-building connections that exceed the 100-meter limitation of Ethernet copper cables.

Q: What features help ensure network reliability and efficiency with this switch?

A: The DGS-1210-52 supports smart fan cooling with temperature sensor, advanced features like Storm Control, Spanning Tree Protocol (STP), and IGMP snooping, as well as Energy Efficient Ethernet. LED indicators for power and link/activity on each port enhance maintenance and troubleshooting.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'D-Link NETWORK SWITCH' category

DGS- 1024 Price : 5300.0 INR/Piece Minimum Order Quantity : 1 Usage & Applications : Small to mediumsized business networks, unmanaged switching Cable Length : Maximum 100m (Category 5e or better) Ethernet cable Power Consumption : Maximum 17.7 W Network Device : Other, Gigabit Ethernet Switch Number Of Ports/Pins : 24 ports Power Supply : Other, 100 to 240 VAC, 50/60 Hz internal universal power supply Operating Temperature : 0C to 40C Weight : 1.26 kg Device Type : Unmanaged Switch Features : Plug and play, Fanless design, IEEE 802.3az Energy Efficient Ethernet, Metal housing Interface Type : RJ45 Port : 24 x 10/100/1000BaseT ports Connectivity Type : Other , Wired Ethernet Frequency : 50/60 Hz Dimension (L*W*H) : 280 x 180 x 44 mm IP Routing : No Remote Control : Yes

Send Inquiry

DGS-1210- 28 Price : 10500.0 INR/Piece Minimum Order Quantity : 1 Usage & Applications : Small to Medium Enterprises, Workgroup Connectivity Cable Length : Up to 100 meters for copper Power Consumption : Maximum 25W Network Device : Other, Managed Gigabit Ethernet Switch Number Of Ports/Pins : 28 Power Supply : Other, 100240V AC, 50/60Hz Internal Power Supply Operating Temperature : 0C to 50C Weight : 2.5 kg Device Type : Layer 2+ WebSmart Switch Features : VLAN, QoS, Link Aggregation, Loopback Detection, IGMP Snooping, Security Functions Interface Type : RJ45, SFP Port : 24 x 10/100/1000BaseT ports, 4 x Combo 100/1000BaseT/SFP ports Connectivity Type : Other , Wired Ethernet Frequency : 50/60 Hz Dimension (L*W*H) : 440 x 210 x 44 mm IP Routing : Static Routing Supported Remote Control : Yes

Send Inquiry

DGS- 1016 Price : 4300.0 INR/Piece Minimum Order Quantity : 1 Usage & Applications : Small Office/Home Office, SMEs, network expansion Cable Length : Up to 100 meters for UTP Cat 5e Power Consumption : Max. 13.2W Network Device : Other, Ethernet Switch Number Of Ports/Pins : 16 Ports Power Supply : Other, 100~240V AC, 50/60Hz internal universal power supply Operating Temperature : 0~40C Weight : 1.25 kg Device Type : Unmanaged Desktop Switch Features : Plug and Play, 16 Gbps switching capacity, auto MDI/MDIX, fanless design Interface Type : RJ45 Port : 16 x 10/100/1000BASET ports Connectivity Type : Wired Frequency : 50/60 Hz Dimension (L*W*H) : 280 x 125.8 x 44mm IP Routing : No Remote Control : Yes

Send Inquiry

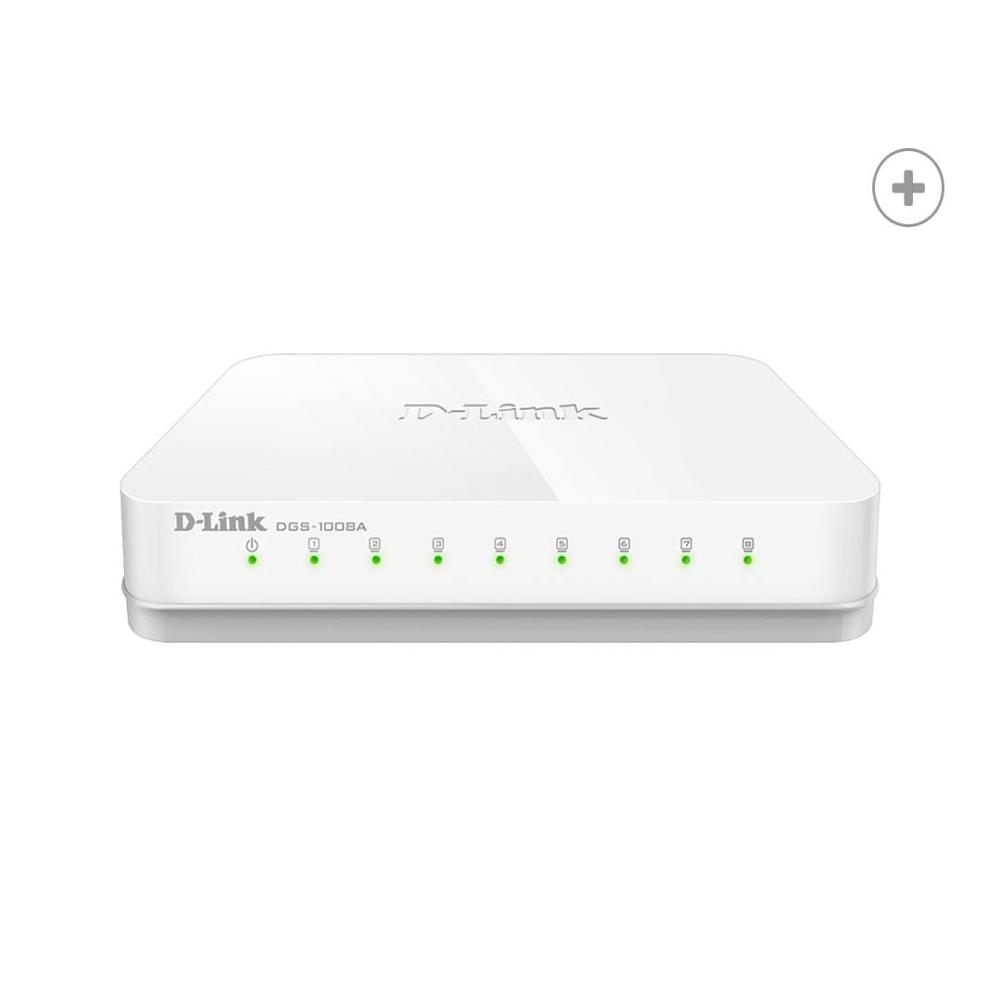

DGS- 1008 Price : 2100.0 INR/Piece Minimum Order Quantity : 1 Usage & Applications : Small office/home office networks, expanding wired connectivity Cable Length : Maximum 100 meters (Cat5e/6) Power Consumption : Max. 4.3W Network Device : Other, Gigabit Ethernet Switch Number Of Ports/Pins : 8 Ports Power Supply : Other, 5V DC, 1A adapter Operating Temperature : 0C ~ 40C Weight : 250g Device Type : Desktop Unmanaged Switch Features : Plug & Play, AutoMDI/MDIX, IEEE 802.3az EnergyEfficient Ethernet, Fanless design Interface Type : RJ45 Ethernet Port : 8 x 10/100/1000 Mbps RJ45 Connectivity Type : Wired Frequency : 50/60 Hz (Power Adapter) Dimension (L*W*H) : 165 x 98 x 28 mm
